Marina and Harbour Construction: Why Composite Materials Are Replacing Timber and Steel on UK Waterfront Projects
The UK has more than 600 commercial marinas and several thousand harbour facilities, ranging from major port infrastructure to small leisure marinas and tidal landing stages. Many of the access systems, pontoon walkways, gangways, handrails, and jetty structures within these facilities were built with timber or steel in the 1970s, 1980s, and 1990s and are now approaching or beyond the end of their designed service life. The replacement and refurbishment market is significant, and the specification decisions being made now will define the maintenance cost profile of these facilities for the next 40 to 50 years.
Composite materials, and GRP in particular, have moved from a specialist alternative to the default specification for new waterfront infrastructure across much of the sector. Engineered Composites supplies a full range of GRP products for marina and harbour applications, including pultruded structural profiles, GRP grating, handrail systems, ladders, and mesh fencing, all manufactured at its facility in Chester to standards that meet the demands of continuous tidal and salt water exposure.
Why Timber and Steel Are Being Phased Out
Timber has historically been the material of choice for jetties, pontoon decking, and harbour walkways because of its availability, workability, and relatively low initial cost. In a permanently wet or tidal environment, however, timber requires substantial ongoing maintenance. Preservative treatment must be reapplied on a regular cycle, structural members in contact with salt water or soil require replacement as rot and biological degradation progress, and the slip resistance of weathered timber decking becomes a safety liability over time. The cost of maintaining a timber jetty over a 20-year period frequently exceeds the cost of the original structure.
Steel in marine environments faces the challenge that any specifier who has worked on coastal infrastructure will recognise. Even with hot-dip galvanising and high-specification paint systems, the combination of salt water immersion, tidal cycling, and marine biological growth drives corrosion at a rate that makes 15 to 20-year maintenance cycles optimistic. Structural steel members at or below mean water level are particularly vulnerable, and the inspection and remediation costs associated with below-water steelwork are substantially higher than for above-water structures.
The GRP Advantage in Marine and Tidal Environments
GRP structural profiles produced to BS EN 13706 are inherently resistant to salt water, marine biological growth, tidal cycling, and the range of pH conditions encountered in coastal environments. The material does not corrode, does not rot, and does not require surface treatment to maintain its structural or aesthetic properties. GRP grating panels used for pontoon decking and jetty walkways provide consistent slip resistance across all weather conditions, meeting the requirements of HSE guidance on safe working surfaces in marine and waterfront environments.
The structural properties of pultruded GRP are well established. Tensile strength in the longitudinal direction typically falls in the range of 240 to 300 MPa, and the material’s high strength-to-weight ratio makes it particularly well suited to floating structures where dead load has a direct relationship with freeboard and stability. GRP pontoon components and walkway sections can be handled and installed by small teams without mechanical lifting equipment, which is a significant practical advantage in tidal environments where the installation window is restricted by water levels.
Compliance and Safety Standards
GRP products for marina and harbour applications can be specified to meet the requirements of the Maritime and Coastguard Agency guidance on passenger-carrying vessels and fixed harbour structures. Fire classification to EN 13501-1 is available on all structural profiles and grating products, and ECL can provide Class 2 fire performance to BS 476 Part 7 as standard. For harbour authorities and marina operators subject to port safety legislation, the non-conductive nature of GRP also eliminates the electrical fault path risk that exists when steel structures are in proximity to shore power connections and electrical services running along pontoons and jetty structures.
Environmental Credentials for Waterfront Projects
Marine and waterfront environments are ecologically sensitive, and planning authorities increasingly require developers and harbour authorities to demonstrate that construction materials do not present a risk to marine ecology. GRP does not leach preservatives or heavy metals into the water column, unlike pressure-treated timber and some galvanised steel systems. Environmental Product Declarations are available for ECL’s GRP product ranges, and the company can provide documentation to support BREEAM assessments and environmental impact statements for consented waterfront development projects.
The whole-life sustainability case is also strong. A GRP jetty or pontoon structure installed today will still be performing at specification in 50 years, with no preservative treatment, no repainting, and no structural replacement within the asset lifecycle. That is a very different whole-life carbon and cost profile from either timber or steel in the same environment.
Applications Across the Marina and Harbour Sector

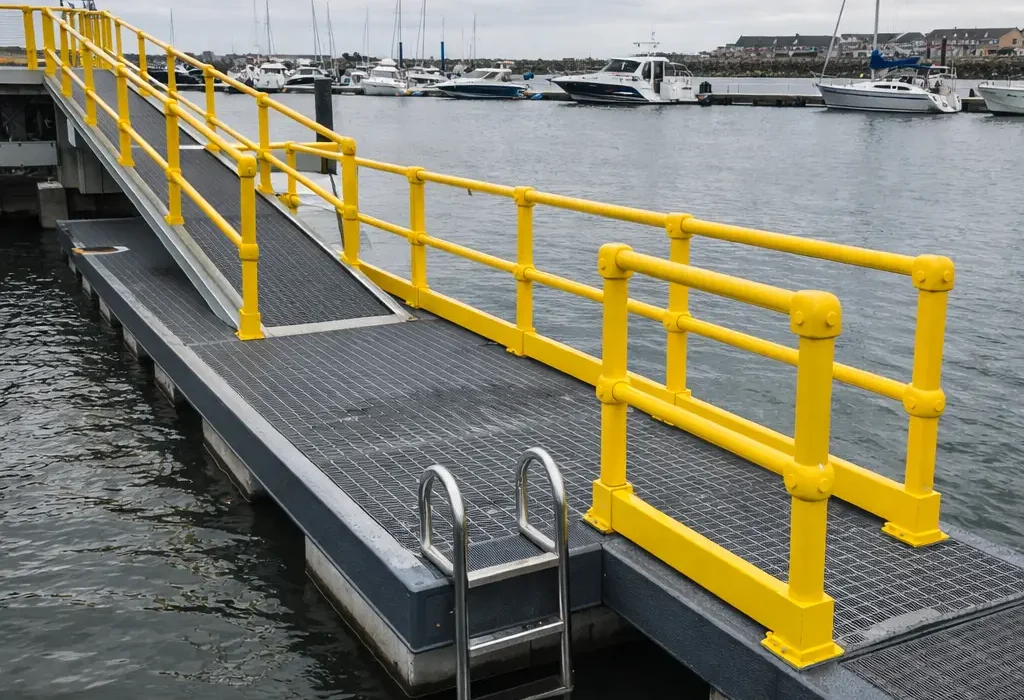

GRP products from Engineered Composites are specified across a wide range of waterfront applications. GRP grating provides anti-slip decking for floating pontoons, fixed jetties, and harbour walkways. Pultruded GRP handrail systems offer compliant fall protection on gangways, access ramps, and quayside edges. GRP ladders provide safe tidal access between floating and fixed structures. GRP mesh fencing and palisade panels are used for perimeter security and hazard zone demarcation in port and harbour facilities.
To discuss specification options for your marina or harbour project, contact the team at Engineered Composites via www.engineered-composites.co.uk. Stock is available for next-day UK delivery, and the technical team can provide structural data, product samples, and compliance documentation on request.
