GRP Modular Handrail Systems
Engineered Composites supplies GRP modular handrail systems manufactured from 51mm square box section pultruded profiles assembled with injection-moulded GRP fittings. The system provides compliant edge protection to BS 6180 for industrial access platforms, walkways, mezzanine floors, and rail trackside structures.
Components are available from UK stock in yellow and grey. The modular design allows handrail runs to be cut to length, configured at corners, and assembled on site without specialist tools or skills. Posts are fixed to the platform structure via base plates. The system is compatible with all ECL grating and profile access platform components, allowing a complete non-conductive, corrosion-free structure to be supplied from one source.
Modular GRP Handrail for Industrial and Infrastructure Applications
The ECL GRP modular handrail system uses 51mm square box section rails and a range of injection-moulded fitting types to create compliant handrail runs across platforms, walkways, and access structures of any configuration. Posts are spaced at a maximum of 1.5m centres and base plates are available in two-hole and three-hole variants in yellow and grey.
All components comply with BS 6180 for barriers and guard rails in and about buildings and BS EN ISO 14122-3 for safety of machinery permanent means of access. For projects requiring independently tested and verified handrail performance to Public Assembly loading standards, ECL’s ENGRail 51mm modular system has been tested to 1.657 kN/m load capacity at 25mm deflection, the world’s first GRP handrail verified to Public Assembly standards.
GRP Modular Handrail Systems - Technical Overview
| Component | Profile/Type | Colours | Standard | Notes |
|---|---|---|---|---|
| Top and mid rail | 51mm SHS box section | Yellow, Grey | BS EN 13706 E23 | Cut to length on site |
| Post | 51mm SHS box section | Yellow, Grey | BS EN 13706 E23 | Max 1.5m centres |
| Base plate (2-hole) | Injection moulded GRP | Yellow, Grey | BS 6180 | For flat deck fixing |
| Base plate (3-hole) | Injection moulded GRP | Yellow, Grey | BS 6180 | For higher load fixing |
| Corner fittings | Injection moulded GRP | Yellow, Grey | BS 6180 | 90 degree and adjustable |
| End caps | Injection moulded GRP | Black | N/A | Square and round profiles |
Key Performance Features
- Compliant with BS 6180 for barriers and guard rails
- Compliant with BS EN ISO 14122-3 for permanent means of access to machinery
- For Public Assembly loading: see ENGRail (1.657 kN/m independently tested)
- 51mm SHS box section rails and posts to BS EN 13706 E23 grade
- Injection-moulded GRP fittings compatible with all ECL box section profiles
- Available in yellow and grey from UK stock
- Non-conductive: suitable for rail, electrical, and EMF-sensitive environments
- Compatible with all ECL grating and access platform components
Non-Conductive Edge Protection
GRP modular handrail is electrically non-conductive throughout, making it the correct specification for rail trackside walkways, electrical substations, and data centre platforms where steel handrail would create a conductivity hazard.
Maintenance Free in Aggressive Environments
GRP handrail does not rust, does not require painting, and is immune to the chemicals and biological agents found in water treatment, marine, and industrial environments. Yellow safety colour does not fade or require repainting.
Single Source Supply with Access Platform Components
GRP modular handrail components are compatible with all ECL grating and structural profile products, allowing the complete access platform including deck, structure, and edge protection to be ordered from one supplier.
GRP Modular Handrail for Water Treatment, Rail, Industrial Platforms, and Data Centres

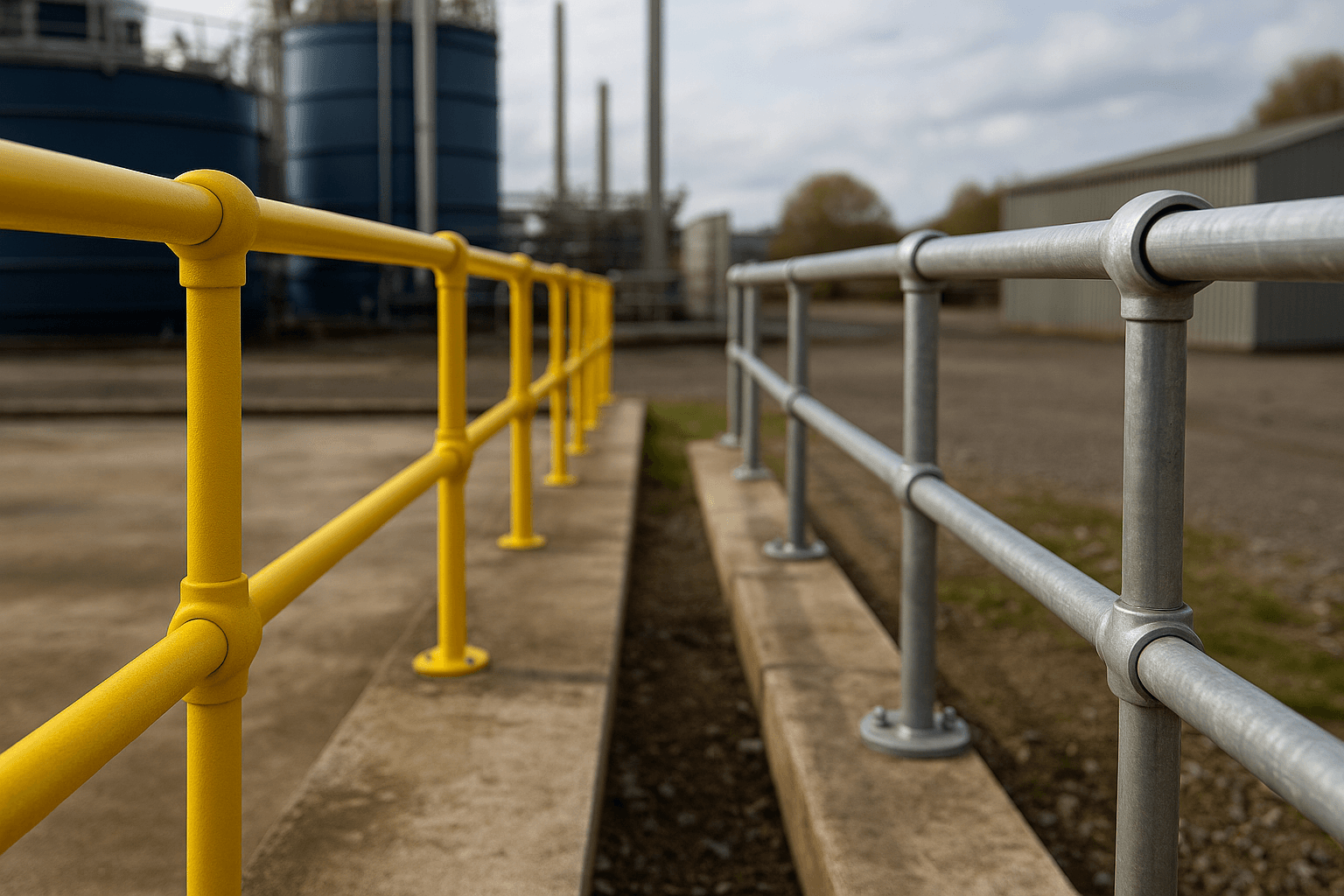

Water Treatment and Utilities
Yellow GRP handrail on water treatment platforms provides safety colour compliance and corrosion resistance in a single product. No painting or replacement required over the platform design life.
Rail Trackside
RISQS accredited supply. Non-conductive GRP handrail is used on trackside walkways and platform structures across the UK rail network. Yellow safety colour is standard stock.

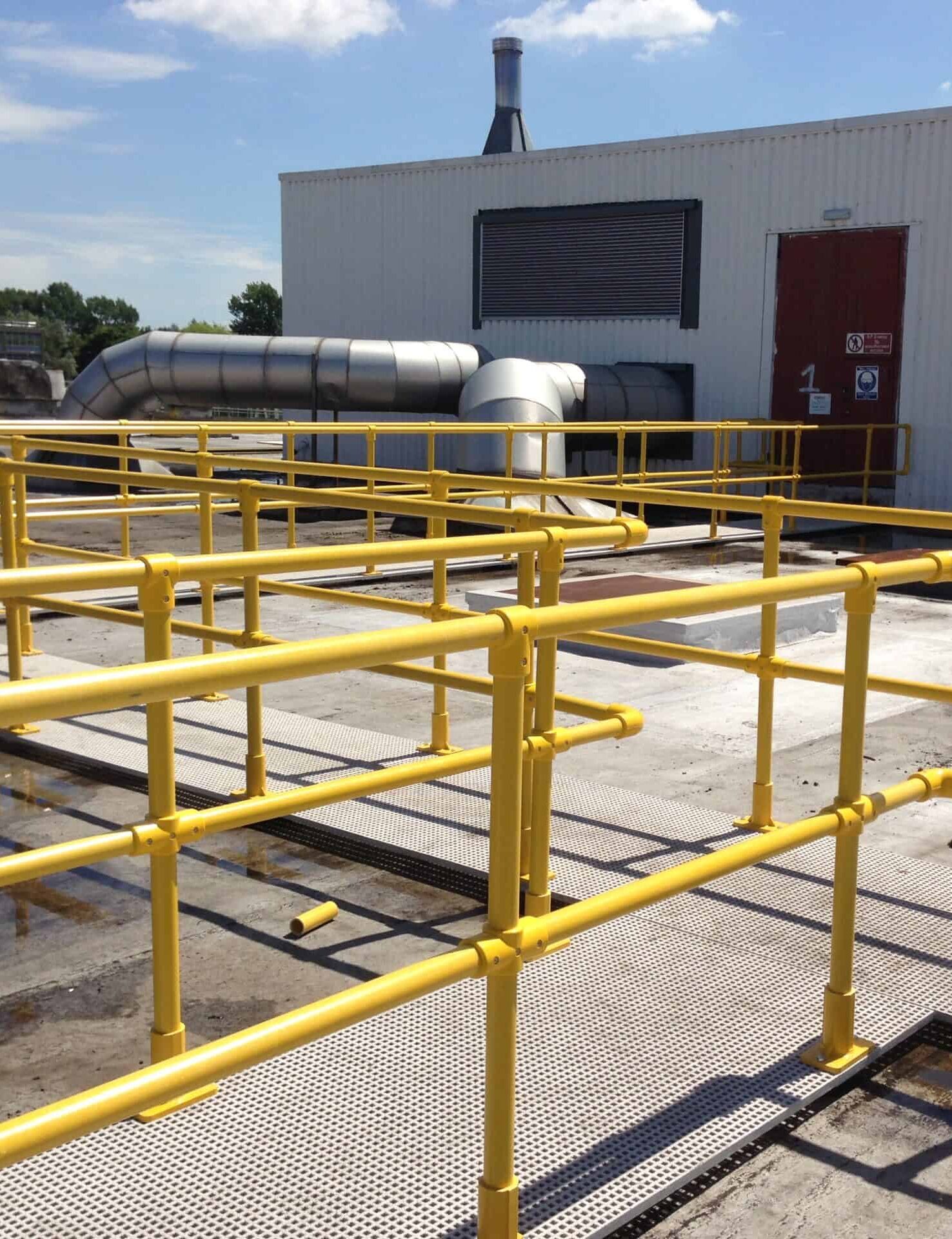

Industrial Platforms and Mezzanines
GRP modular handrail installs quickly on new or refurbished platforms and mezzanine floors. Components can be configured for any plan shape and cut to length on site.
For Public Assembly
ENGRail is the upgraded system for public assembly loading. See /engrail-modular-grp-handrail-system/ for the independently tested 1.657 kN/m performance specification.
Need GRP Handrail for Your Platform or Walkway? Talk to Our Team.
Common Applications for GRP Modular Handrail Systems

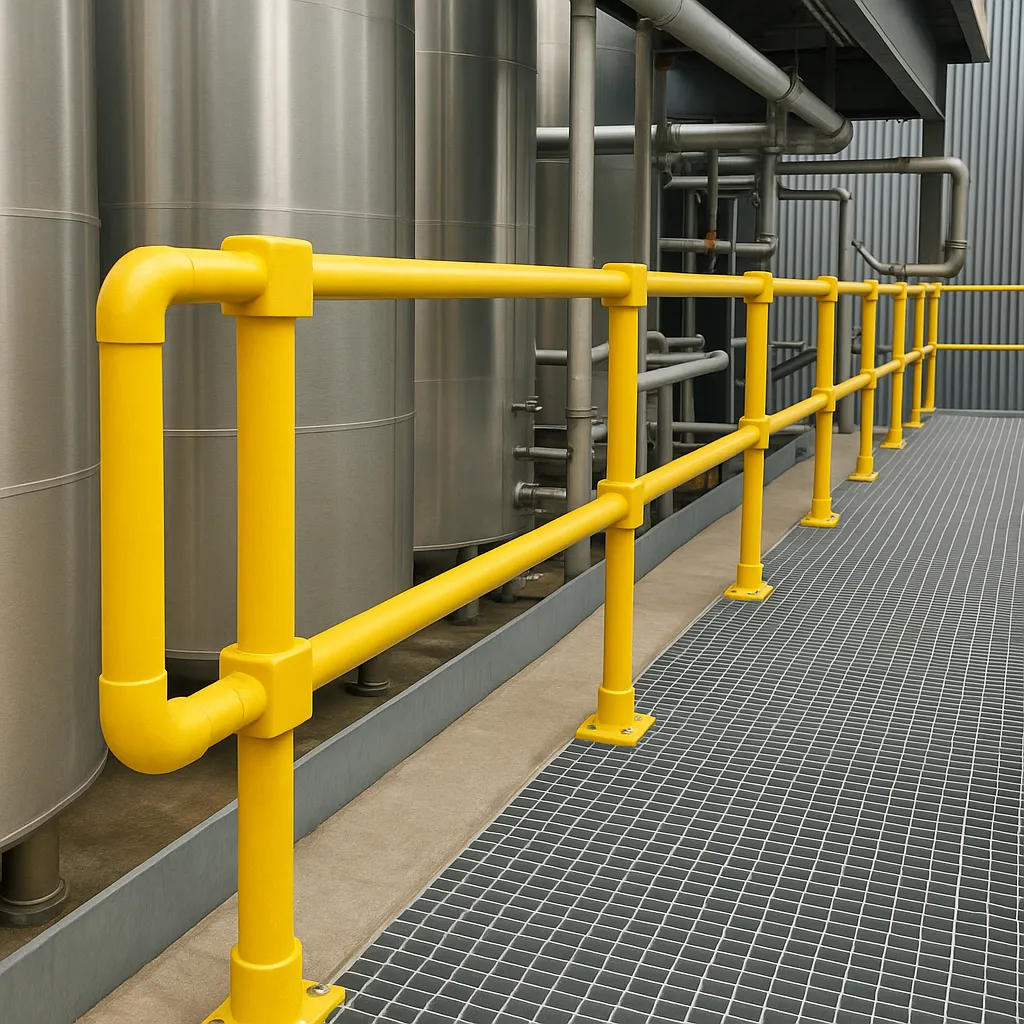

Industrial Platforms & Walkways
Corrosion-free handrail and guardrail systems for access platforms, mezzanine walkways, and elevated working areas in factories, processing plants, and warehouses.
Water Treatment & Utilities
Resistant to chlorine, H2S, and constant moisture on tank access platforms, pump chamber walkways, and valve access structures within treatment works and pumping stations.
Chemical & Pharmaceutical Plants
Withstands aggressive chemicals and corrosive atmospheres without coating failure. No galvanising or repainting required throughout the service life.
Marine & Offshore Platforms
Saltwater resistant and corrosion-free for jetty handrails, vessel deck guardrails, and offshore platform perimeter protection where steel would corrode rapidly.
Rail & Trackside Infrastructure
Non-conductive throughout with no earthing required. Suitable for platform edge handrails, depot walkway guardrails, and trackside access structures. RISQS accredited.
Electrical Substations & Data Centres
Non-conductive and non-magnetic handrail systems for substation access platforms and data centre plant areas where conductivity must be eliminated.
Construction & Public Access
Lightweight modular installation with no hot works required. Suitable for staircase handrails, ramp guardrails, and access structures on construction and public infrastructure projects.
Nuclear & Defence Facilities
Non-sparking, non-magnetic, and maintenance-free for restricted access structures and sensitive installations where steel handrail systems are not suitable.
