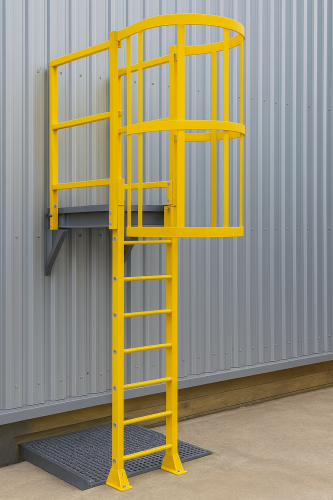

GRP Vertical Access Ladders and Safety Cage Systems
The Engineered Composites GRP Vertical Access Ladder System is a modular, pultruded glass reinforced plastic ladder and safety cage solution engineered for fixed access applications. The entire assembly, including side posts, rungs, hoops, cage strips, wall brackets, and top handrail, is manufactured in GRP using a fire retardant polyester and vinyl ester resin system. This eliminates the corrosion, electrical conductivity, and maintenance obligations that come with steel.
The system is supplied in safety yellow (RAL 1023) as standard and is available in eight modular configurations covering installed heights from 2,200 mm to 6,200 mm. Extension modules in 500 mm, 1,000 mm, 2,000 mm, and 3,000 mm increments allow bespoke heights beyond the standard range. All components are mechanically assembled on site using stainless steel fixings with no welding, hot works permits, or specialist tools required.
GRP Ladders & Steps
Why GRP Ladders & Steps?
- Resin system: polyester and vinyl ester, fire retardant
- Side post profile: GRP square box section 50 x 50 mm
- Rung profile: corrugated GRP tube, 32 mm diameter, 300 mm spacing
- Outside width: 600 mm, inside width: 500 mm
- Safety cage diameter: 800 mm
- Cage hoop spacing: maximum 1,200 mm
- Wall bracket spacing: maximum 1,500 mm
- Design load: 200 lb (90 kg) at rung midpoint, safety factor 4.0
- Standard colour: Safety Yellow RAL 1023
- Installed height range: 2,200 mm to 6,200 mm, extension modules available
- BS EN ISO 14122-4: Fixed Ladders. Designed to comply.
- BS EN 13706: Pultruded GRP profiles. Compliant.
- EN 13501-1: Fire classification. Compliant, fire retardant resin system.
- BS 4211: Ladders for permanent access. Designed to meet requirements.
- ISO 9001:2015: Quality management system certified.
- RISQS: Railway Industry Supplier Qualification Scheme accredited.
- JOSCAR: Defence sector supplier registration.
- Fixings: A4 stainless steel Grade 304, no galvanic corrosion.
- Standard configurations: LC2500 to LC6000, 2,200 mm to 6,200 mm installed height.
Non-Conductive and Entirely Free
No earthing or bonding required. Zero electrical conductivity throughout, safe for rail, substation, and high-voltage environments.
BS EN ISO 14122-4 Compliant
Designed to meet fixed ladder requirements. Rung spacing of 300 mm within the compliant range. Fire retardant resin meets EN 13501-1.
Up to 75% Lighter Than Steel
Reduces manual handling risk and installation time. No crane required. Two people can install using standard hand tools.
50+ Year Design Service Life
No corrosion, no repainting, no anticorrosion treatment required throughout the service life.
Why Choose the GRP Ladder System?
Safe to Use in Electrically Hazardous Environments
Zero electrical conductivity throughout. No earthing or bonding required in rail, substation, or high-voltage locations.
Corrosion Resistance Without Protective Coatings
Inherently resistant to chlorine, H2S, saltwater, and most industrial chemicals. No galvanising or recoating required.
Lightweight for Simple, Fast Installation
Approximately 25% of the weight of steel. Two people can install the complete system with no crane or specialist lifting equipment.
Modular System for Standard and Bespoke Heights
Eight standard configurations from 2,200 mm to 6,200 mm. Extension modules cover any bespoke height beyond the standard range.
Zero Maintenance in Service
No repainting, no rust treatment, and no coating inspection. Visual inspection only throughout the 50-plus year service life.
Non-Magnetic and Signal Safe
Non-magnetic throughout. No interference with electrical signals, sensitive equipment, or navigation systems on site.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturing process | Pultrusion |
| Material | GRP (Glass Reinforced Plastic) |
| Resin system | Polyester and vinyl ester, fire retardant |
| Standard colour | Safety Yellow RAL 1023 |
| Side post profile | GRP square box section 50 x 50 mm |
| Rung profile | Corrugated GRP tube, 32 mm diameter |
| Rung spacing | 300 mm (BS EN ISO 14122-4 compliant range: 225 to 300 mm) |
| Outside width | 600 mm |
| Inside width | 500 mm |
| Safety cage diameter | 800 mm |
| Cage hoop material | GRP flat sheet 40 x 5 mm |
| Cage hoop spacing | Maximum 1,200 mm |
| Cage start height above floor | 2,200 mm to 2,400 mm |
| Cage height above top landing | Minimum 1,000 mm |
| Wall bracket material | GRP channel 100 x 50 x 6 mm |
| Wall bracket spacing | Maximum 1,500 mm |
| Top handrail | GRP square box 50 x 50 mm with elbows and 3-way connectors |
| Top step | GRP channel 200 x 60 x 10 mm |
| Fixings | Stainless steel Grade 304: M8x30, M8x70, M6x60 rivnut, anchor bolt M8x80 |
| Design load | 200 lb (90 kg) concentrated load at rung midpoint |
| Safety factor | 4.0 |
| Compliance standard | BS EN ISO 14122-4: Fixed Ladders |
| Fire rating | EN 13501-1, fire retardant resin system |
| Service life | 50+ years in normal industrial environments |
Need a GRP Ladder for Your Project?
Standard Ladder Configurations
| Code | Installed Height (mm) | Side Post Height (mm) | Rungs | Cage Strip Height (mm) |
|---|---|---|---|---|
| LC2500 | 2,200 to 2,650 | 3,600 | 8 | 1,200 |
| LC3000 | 2,750 to 3,200 | 4,100 | 10 | 1,800 |
| LC3500 | 3,150 to 3,600 | 4,600 | 11 | 2,300 |
| LC4000 | 3,700 to 4,150 | 5,100 | 13 | 2,800 |
| LC4500 | 4,250 to 4,700 | 5,600 | 15 | 3,300 |
| LC5000 | 4,650 to 5,100 | 6,100 | 16 | 3,600 |
| LC5500 | 5,200 to 5,650 | 6,600 | 18 | 4,300 |
| LC6000 | 5,750 to 6,200 | 7,100 | 20 | 4,800 |
Extension modules note below table: Extension modules available: LA500 (500 mm), LA1000 (1,000 mm), LA2000 (2,000 mm), LA3000 (3,000 mm). Each module includes side posts, rungs, and fixings. Contact the ECL technical team for bespoke heights and configurations.
Typical Applications for GRP Ladders & Steps
The GRP Vertical Access Ladder System is designed for any fixed access application where steel would corrode, conduct electricity, or require ongoing maintenance to remain serviceable.
Water Treatment & Utilities
Resistant to chlorine and H2S with no corrosion maintenance on tank access and pump chamber installations
Rail & Trackside Infrastructure
Non-conductive throughout with no earthing required. RISQS accredited for rail sector supply.
Chemical & Process Plants
Chemically resistant resin with no coating failure risk on plant access and vessel entry applications
Marine & Offshore
Withstands salt spray, UV, and constant moisture with a 50-plus year design life and no surface treatment
Data Centres & Telecoms
Non-conductive and non-magnetic throughout. No interference with electrical signals or sensitive equipment
Industrial Buildings & Rooftops
Lightweight installation with no hot works required. Fast assembly on mezzanine entry and rooftop access ladders.
Nuclear Facilities
Non-magnetic and non-conductive with no maintenance requirement for restricted access structures and plant maintenance.
