Description
The entry-level I-beam in the ECL structural profiles range at 120 x 70 x 8mm, weighing 3.67kg/m and supplied in 6 metre lengths in grey. Built up from continuous E glass fibre roving set in isophthalic polyester resin.

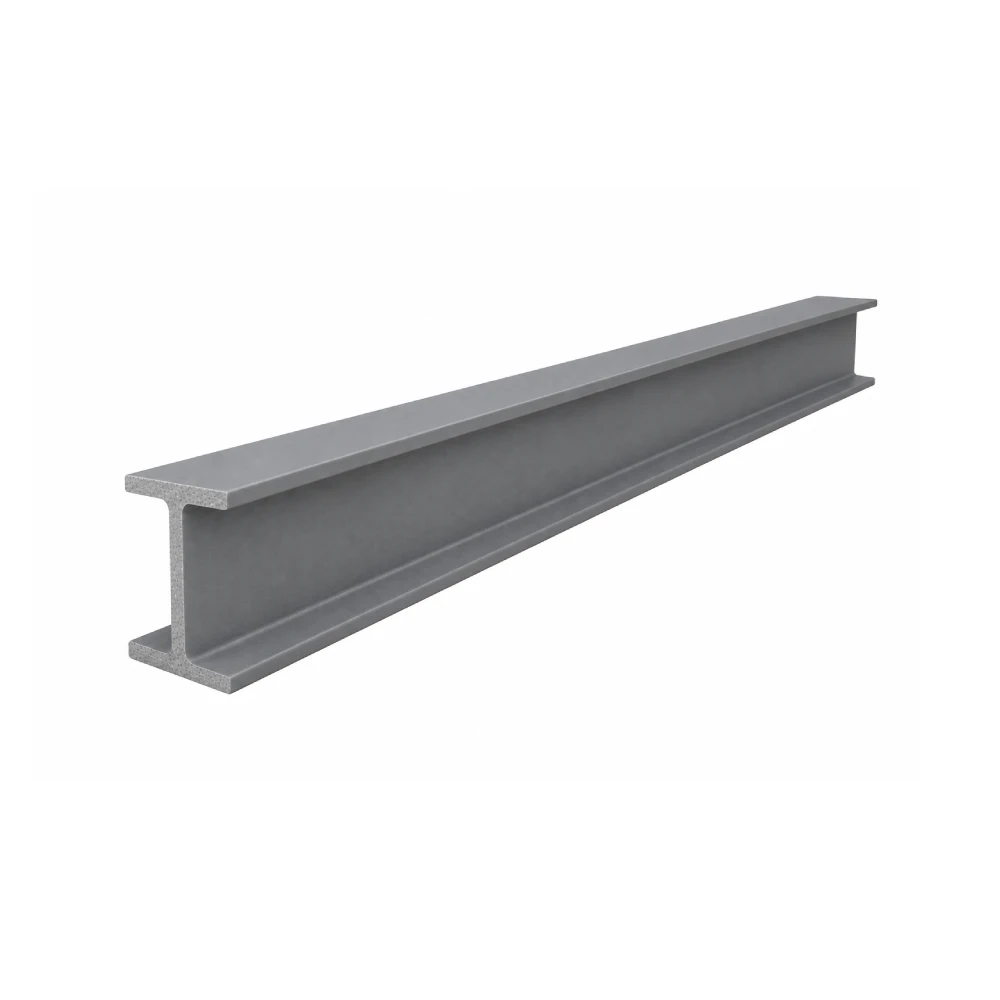

GRP I-Beam 120 x 70 x 8mm
Pultruded GRP I-beam measuring 120 x 70 x 8mm. Weighs 3.67kg/m, supplied in 6m lengths in grey. Non-conductive, corrosion-resistant structural I-section for GRP beams, walkway frames and support structures. Enquire for pricing.
Typical Applications
Specified for primary GRP beams, walkway frames, stair stringers and support structures where a corrosion-immune alternative to steel I-section is required. Contact the ECL technical team for span and load data specific to the application.
Compliance
Manufactured to EN 13706 profile standard under ISO 9001:2015 certified quality management systems.
Key Specifications
- Dimensions: 120 x 70 x 8mm
- Weight: 3.67kg/m
- Length: 6 metres
- Material: E glass reinforced isophthalic polyester resin
- Standard: EN 13706 grade
Product Attributes
- Brand: Engineered Composites
- Condition: New
- Material: Glass Reinforced Plastic GRP Fibreglass
- Colour: Grey
