Description
The deepest bar section in the open mesh range, at 50mm thickness and 90kg per panel, with a wider 50 x 50mm aperture in the full 3660 x 1220mm sheet size.
GRP Open Mesh Grating 50mm – 3660 x 1220mm Panel

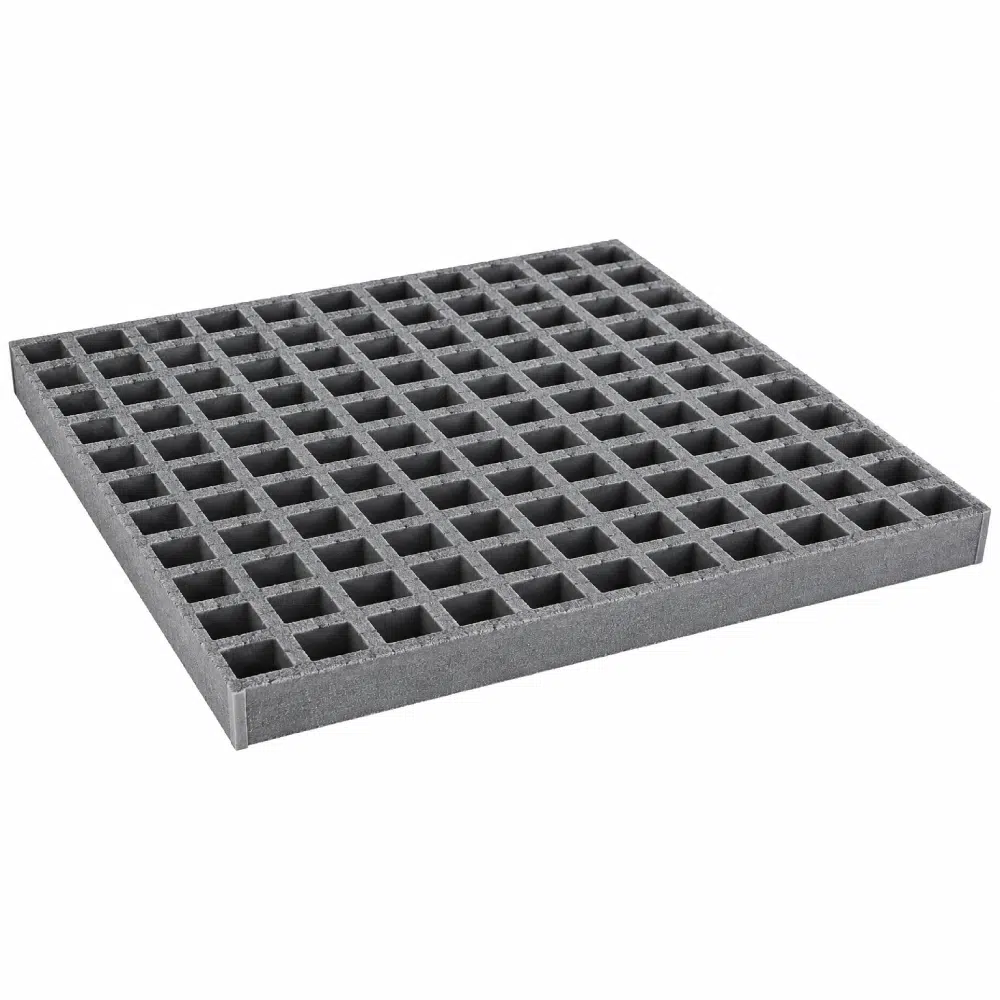

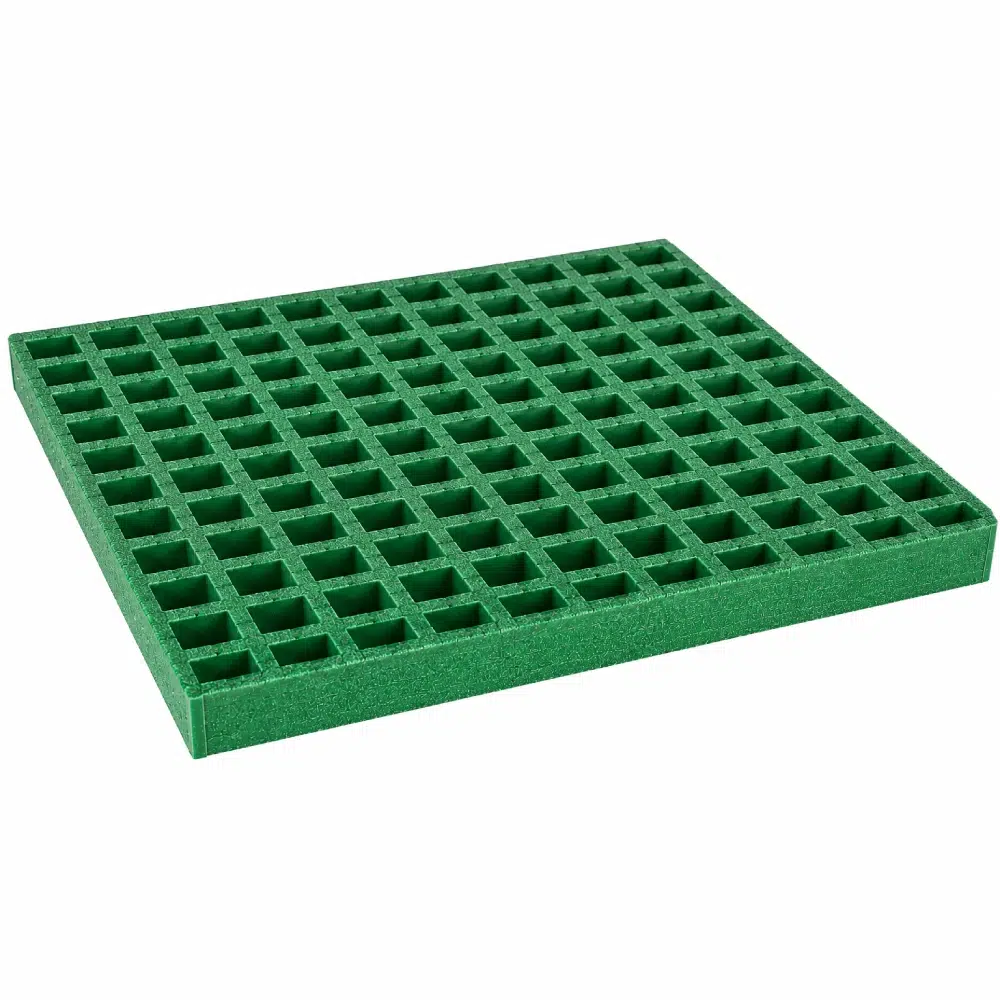

50mm premium heavy-duty moulded GRP open mesh grating panel, 3660 x 1220mm. Maximum load capacity and longest spans in the open mesh range. Available in grey and green. Enquire for pricing.
Typical Applications
Designed for the longest unsupported spans and highest concentrated loads on industrial access platforms, mezzanines and crane gantry walkways.
Compliance
Compliant with BS EN 4592. ISO 9001:2015 certified manufacture.
Key Specifications
- Panel Size: 3660 x 1220mm
- Thickness: 50mm
- Aperture: 50 x 50mm
- Weight: 90kg per panel
- Material: E glass reinforced isophthalic polyester resin
- Standard: BS EN 4592
Product Attributes
- Brand: Engineered Composites
- Condition: New
- Material: Glass Reinforced Plastic GRP Fibreglass
- Colour: Grey, Green
