ENGRail 51mm Modular Handrail System
Engineered for safe access infrastructure, the ENGrail 51 mm GRP modular handrail system delivers corrosion resistance, structural strength and low maintenance in demanding industrial environments.
The ENGRail 51mm Box Section Modular Handrail System is
a new-generation GRP pultruded handrail engineered for the
most demanding industrial, rail, marine, and infrastructure applications.
Engineered Composites’ GRP modular handrail system sets
a new standard for high performance non metallic safety
barriers. Precision pultruded for strength and consistency, it delivers impressive load capacity while remaining significantly lighter than steel, allowing faster installation with reduced
manual handling risk. Designed for demanding infrastructure

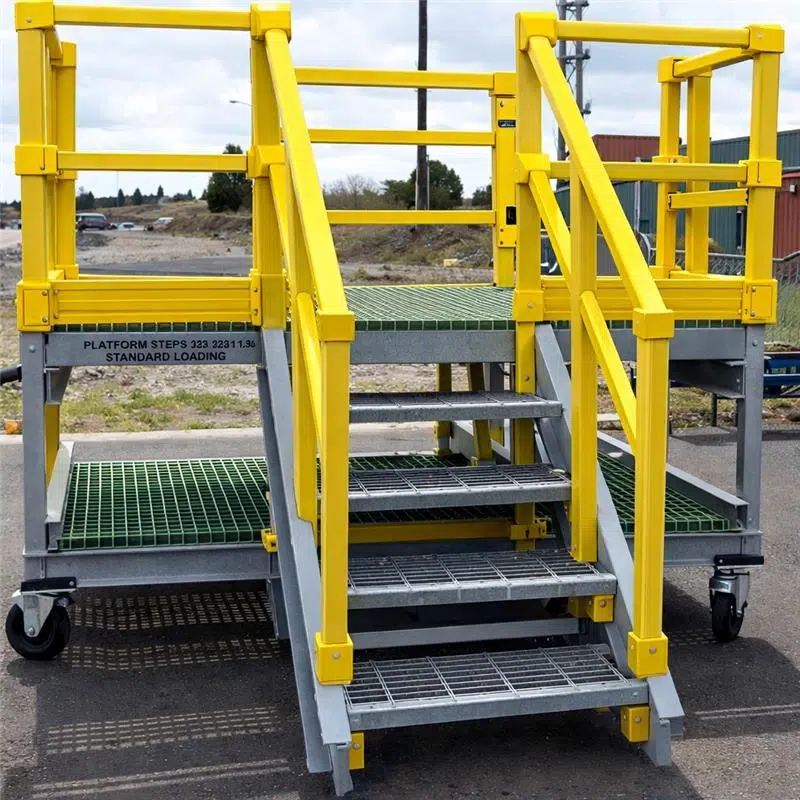

environments, it provides dependable structural integrity across walkways, platforms, staircases, and roof perimeters.
ENGRail 51mm Box Section Modular Handrail System
Product Overview
ENGRail is a high-performance GRP (Glass Reinforced Plastic) pultruded modular handrail system designed to exceed the structural performance of both traditional steel and conventional GRP handrails.
Manufactured using precision pultrusion technology, the system delivers consistent structural performance and high load capacity while maintaining a lightweight profile that significantly reduces installation time and manual handling requirements.
The 51mm box section profile provides superior stiffness compared to round tube systems, resulting in enhanced load performance and structural stability.
Independent testing confirms that the system exceeds all UK and international load standards while achieving 100% elastic recovery, ensuring the handrail returns to its original position after load removal.
Key Features & Benefits
Structural Load Performance
ENGRail delivers a load capacity of 1.657 kN/m at 25 mm deflection, meeting and exceeding the safety requirements for public assembly barriers under relevant UK standards.
Elastic Structural Recovery
The GRP structure returns to its original position after load removal with no permanent deformation, maintaining long term structural integrity even under repeated loading.
Corrosion-Resistant Construction
Unlike steel systems, GRP does not rust, corrode, or degrade when exposed to moisture, coastal environments, or aggressive industrial chemicals, ensuring a long service life with minimal maintenance.
Lightweight Design
At approximately 25% of the weight of steel, ENGRail significantly reduces installation time, simplifies handling on site, and lowers structural loading requirements for walkways, platforms and access systems.
Non-Conductive Safety
GRP construction ensures the system is electrically non-conductive and non-magnetic, improving safety in rail, utilities, substations and other environments with sensitive electrical infrastructure.
Advanced Fire Performance
ENGRail profiles are manufactured using fire-retardant resin systems and assessed using modern fire classification approaches that consider flame spread, smoke production and burning droplets, supporting compliance with the BS EN 13501 reaction-to-fire framework.
Key Performance Data
All figures independently verified by Commercial Standard Testing Lab, Burton on 29th January 2026.
| Deflection mm | Load Achieved kN/m | Standard Exceeded kN/m | Safety Factor x | Exceeded % |
|---|---|---|---|---|
| 25 (UK Standard) | 1.657 kN/m | 1.5 Public Assembly | 1.10x | +10.5% |
| 50 (Nordic Standard) | 3.233 kN/m | 3.0 Crowd Loading | 1.08x | +7.8% |
| 100 (Safety Test) | 7.159 kN/m | 1.5 Public Assembly | 4.77x | +377% |
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ENGRail 51mm Box Section Modular Handrail |
| Profile Geometry | 51mm x 51mm Box Section |
| Manufacturing Process | Pultrusion |
| Material | GRP (Glass Reinforced Plastic) |
| Reinforcement | E-glass fibre roving |
| Resin System | Isophthalic polyester |
| Glass Content | Up to 70% by weight |
| Surface Finish | Polyester surface veil (UV protection) |
| EN 13706 Grade | E23 (Highest Performance Grade) |
Standards & Compliance
- BS 6180:2011 – Barriers in and about buildings
- BS 4592-0:2006 + A1:2012 – Industrial flooring and handrails
- BS EN 13706-3:2002 – Pultruded structural profiles (E23 grade)
- BS EN 1991-1-1 – Eurocode structural load requirements
- BS EN ISO 14122-3 – Safety of machinery guardrails
- Approved Document K – Building Regulations (England)
The system also exceeds Nordic 50mm deflection standards, enabling specification across European and Scandinavian markets.
Need Help Choosing the Right GRP Handrail System? Talk to Our Experts!
We’ll help you find the best solution for your site based on safety, compliance and long-term performance.
Target Markets & Applications
ENGRail is designed for demanding infrastructure environments where durability, safety, and low maintenance are critical.
Rail Infrastructure
Platforms, Footbridges, Trackside access, Stations and depots.
Marine & Offshore
Jetties, Pontoons, Offshore platforms, Coastal structures.
Water & Utilities
Water treatment plants, Pumping stations, Reservoir access platforms.
Nuclear & Energy
Access platforms, Safety barriers, Containment areas.
Chemical & Pharmaceutical
Processing plants, Laboratories, Clean room environments.
Construction
Site safety barriers, Temporary works, Scaffold access systems.
Public Buildings
Retail environments, Sports venues, Theatres and transport hubs.
Renewable Energy
Solar farms, Wind installations, Electrical substations.
