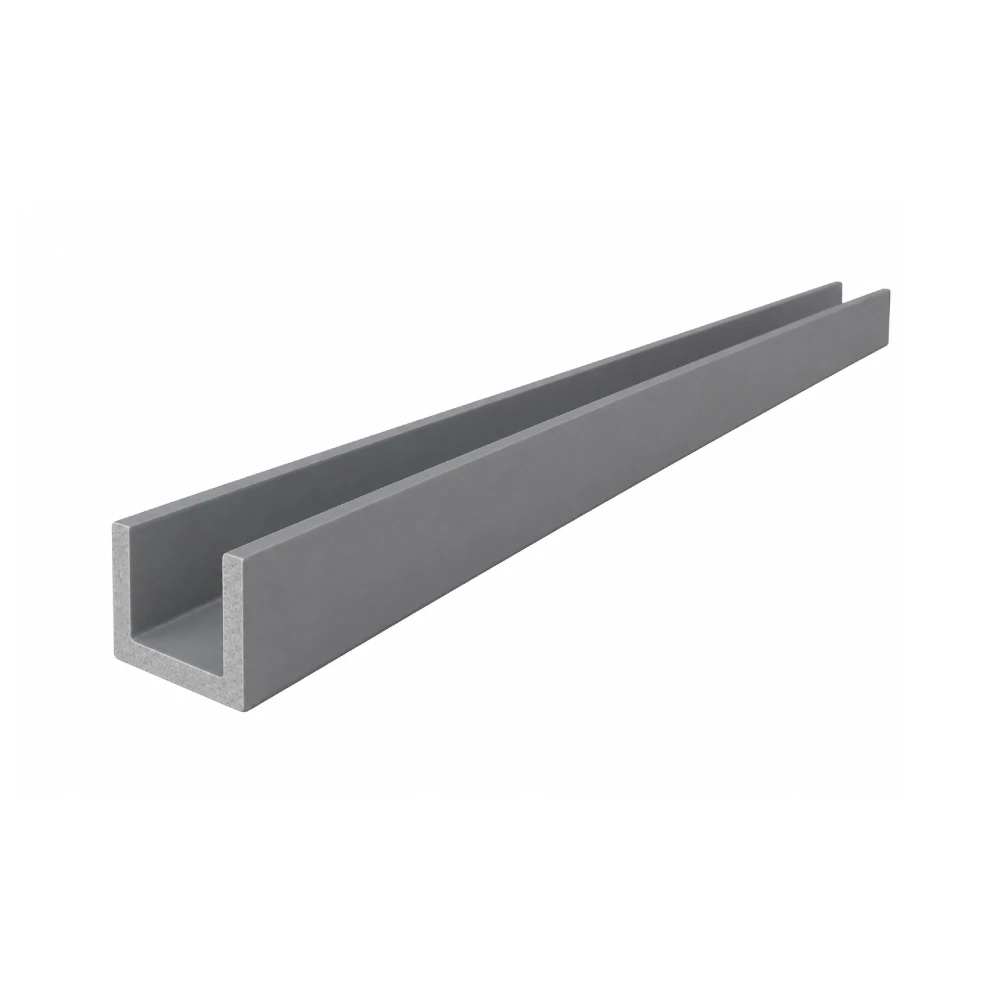

GRP Channel

Pultruded GRP channel profile in grey, supplied in standard 6m lengths. Corrosion-immune, electrically non-conductive and UV stable — a direct replacement for steel channel in corrosive, wet and electrically sensitive environments. Suited to grating bearer support, platform framing, cable trunking, edge protection and primary structural applications across water treatment, marine, chemical, process plant and rail infrastructure. EN 13706 grade. ISO 9001:2015 certified manufacture. Select your size above:50 x 30 x 4mm (0.75kg/m) — frame fabrication, cable trunking, edge protection and secondary support elements. Also available in yellow.76 x 25 x 6.35mm (1.25kg/m) — deeper narrow-flange channel for structural support, grating bearers and cable management where depth-to-width ratio is important.100 x 50 x 6mm (2.03kg/m) — grating bearer support, platform framing and cable management in water treatment, rail and process plant.150 x 50 x 6mm (2.57kg/m) — longer-span grating bearer support and primary structural framing.200 x 60 x 8mm (4.68kg/m) — heavy structural channel for long-span grating bearers, primary walkway framing and load-bearing applications.200 x 60 x 9.5mm (5.59kg/m) — heavier-wall 9.5mm version of the 200mm channel for maximum structural performance.280 x 70 x 12mm (9.20kg/m) — the largest standard channel in the range, for primary structural framing and large-span support systems. Contact ECL technical for load and span data.

Price on application. Contact the ECL technical team on +44 (0)1244 662716 or email info@engineered-composites.co.uk to discuss your project requirements.
